HCPB pin

The HCPB-style pin was based off the pin design from the following paper:

Zhou, G.; Hernández, F.A.; Pereslavtsev, P.; Kiss, B.; Retheesh, A.; Maqueda, L.; Park, J.H. The European DEMO Helium Cooled Pebble Bed Breeding Blanket: Design Status at the Conclusion of the Pre-Concept Design Phase. Energies 2023, 16, 5377. https://doi.org/10.3390/en16145377

This assembly has the class key pin. An example is given in examples/sample_pin.json. The following images show the geometrical parameters for the HCPB-style pin.

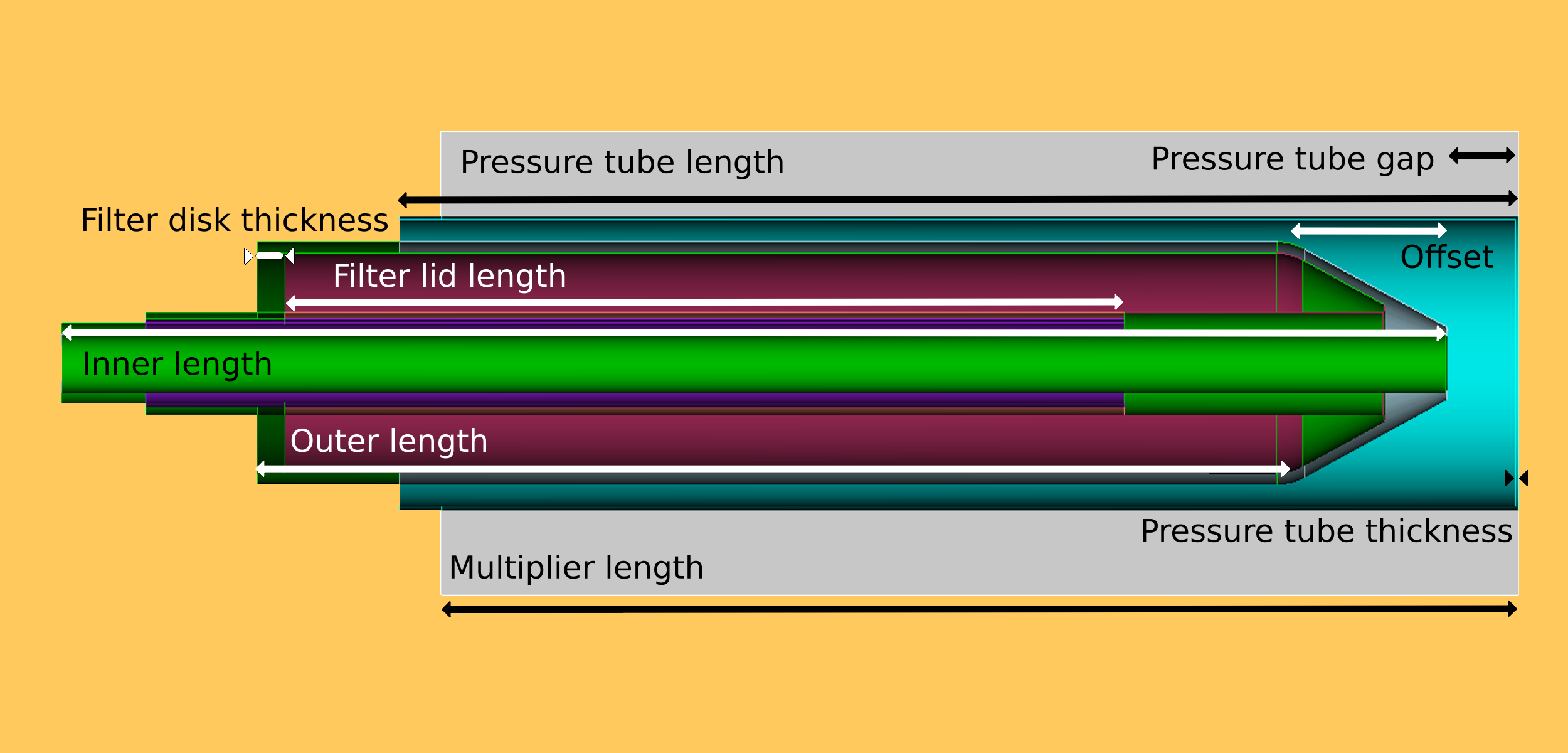

axial parameters

Axial pin parameters

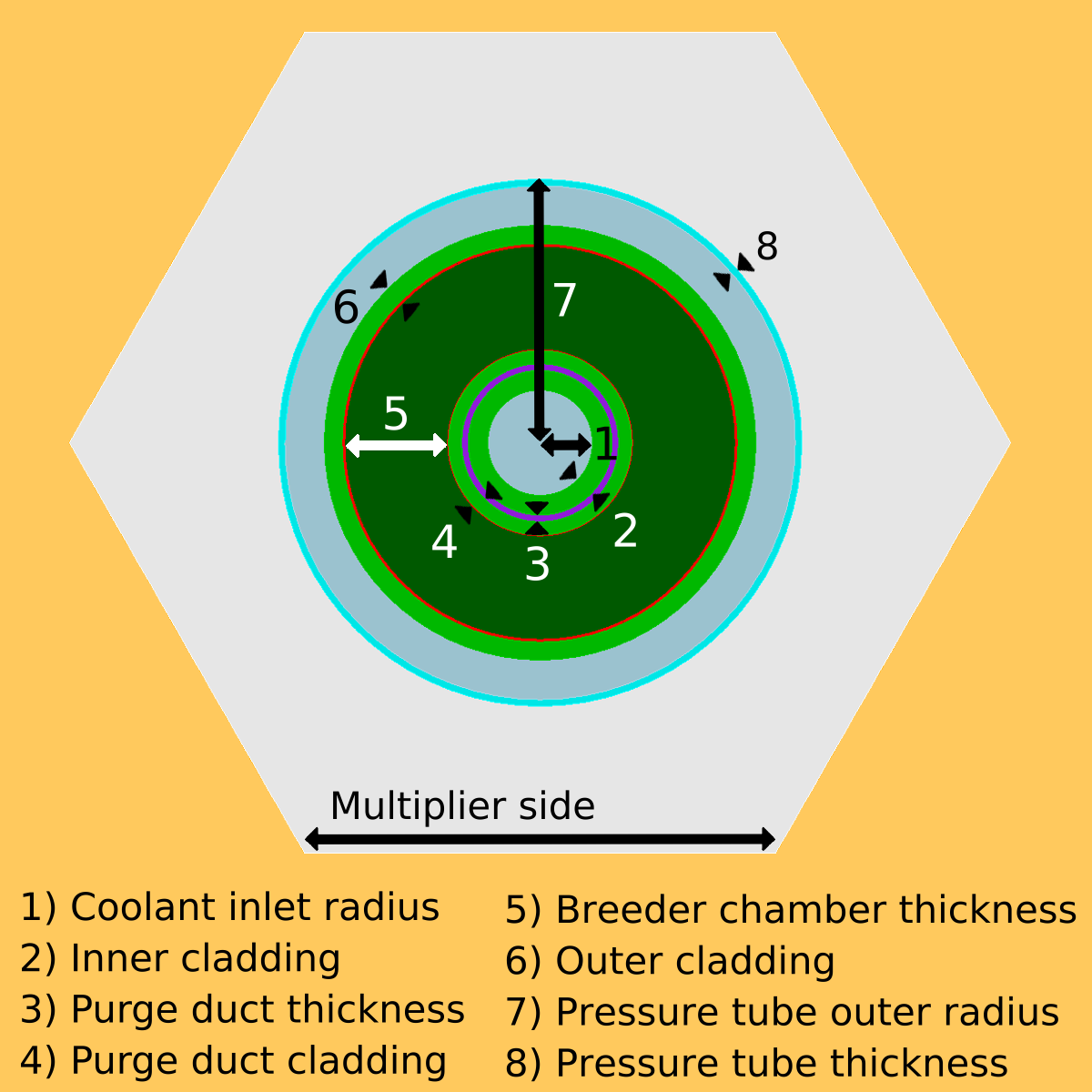

radial parameters

Radial pin parameters
